Configure VLAN on Cisco Switch Using Cisco Packet Tracer

This is how to configure VLAN on Cisco Switch or Virtual LAN on Cisco Switches in your network. A VLAN is a switched network that is logically segmented by function, project team, or application, without regard to the physical locations of the users. VLANs have the same attributes as physical LANs, but you can group computers even if they are not physically located on the same LAN segment. Any switch port can belong to a VLAN, and unicast, broadcast, and multicast packets are forwarded and flooded only to end stations in the VLAN.

Each VLAN is considered a logical network, and packets destined for stations that do not belong to the VLAN must be forwarded through a router or bridge or layer 3 switches. Because a VLAN is considered a separate logical network.

Here we just configure VLAN on Cisco switch and not talking about VTP, STP, and other advanced Switching techniques. It is the basic VLAN configuration. Read more about VLAN on Cisco Packet Tracer CCNA Lab.

How to Configure VLAN on Cisco Switch?

Let’s start to configure VLAN on Cisco switch using Cisco Packet Tracer. You can download the VLAN Lab or create your lab within Cisco packet tracer or other network simulators.

Configure VLAN on Cisco Switch

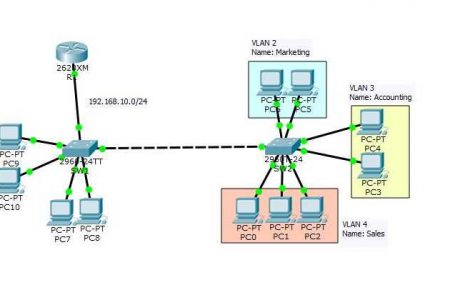

1. Open the VLAN lab and create these three VLAN and named Marketing, Accounting, and Sales. So let’s create them with the following commands.

2. First, change the switch name with “hostname” command.

Switch#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Switch(config)#hostname SW2

3. Now create the VLANs using “VLAN” command.

SW2(config)#vlan 2
SW2(config-vlan)#name Marketing
SW2(config-vlan)#vlan 3
SW2(config-vlan)#name Accounting
SW2(config-vlan)#vlan 4
SW2(config-vlan)#name Sales

4. Just type the “do sh vlan” command from config mod to see whether VLANs are created or not.

Show VLAN Command

You see the VLANs are created successfully.

5. Now try to add interfaces to each of these VLANs. All the Interfaces ports are within the default VLAN and not yet grouped to Marketing, Accounting, and Sales. So try to add an interface to a VLAN with the “Switchport” command.

SW2(config)#interface fastEthernet 0/5
SW2(config-if)#switchport mode access
SW2(config-if)#switchport access vlan 2
SW2(config)#interface fastEthernet 0/6
SW2(config-if)#switchport mode access
SW2(config-if)#switchport access vlan 2

I have added the [fastEthernet 0/5] and [fastEthernet 0/6] to VLAN 2 which is our Marketing VLAN. In this method, we add each interface one by one, but you can use “Interface range” command to add a group of ports to a VLAN.

SW2(config)#interface range fastEthernet 0/2-4
SW2(config-if-range)#switchport mode access
SW2(config-if-range)#switchport access vlan 4

6. Finally type “do sh vlan” and see the result again.

Create and Configure VLAN

Now you can set up VLAN on your network Switches. The next step is configuring Inter-VLAN Routing. I hope you find this article helpful and do comment us about the qualities and improvements of Technig articles.
